技术参数
泵体: 高温工具钢，不锈钢
齿轮: M2钢,其他材料可指定。
滑动轴承: 高温工具钢，不锈钢。
轴封: 双端面螺旋密封
gm5566国民彩票 加热系统 : 电加热
规格/流量范围: 从0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev
操作参数
gm5566国民彩票 粘度: ≤40000 Pas
gm5566国民彩票 温度: ≤400℃
清洗温度: ≤450℃
gm5566国民彩票 进口压力: 高可达12MPa
gm5566国民彩票 高压差: 可达25MPa

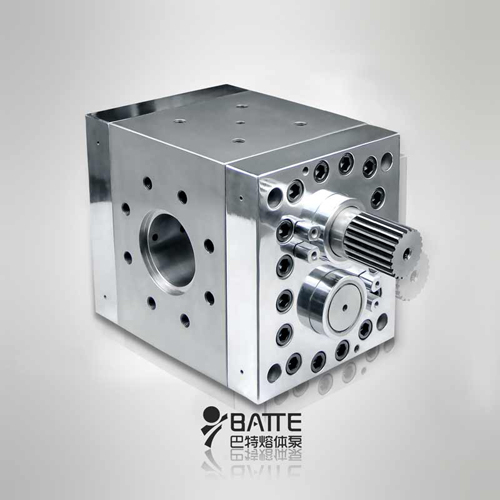

ZB-C Series Reinforced Melt Pump:
ZB-C series reinforced melt pump is mainly used for stabilizing, pressurization and transportation of medium or high viscosity medium from the polymer flow layer. This series of melt pump adopts electrical heating, and applies to PS, PP, PET, PVC, PC, PMMA, PA , etc.
Technical Parameter
Material for Melt Pump Body: High Temperature Tool Steel or Stainless Steel
Material for Gear: M2 Steel (Optional)
gm5566国民彩票 Material for Sliding Bearing: High Temperature Tool Steel or Stainless Steel
Shaft Sealing: Double Spiral Sealing
Heating System: Electrical Heating
gm5566国民彩票 Model/Volume Range: 0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev
Operating Parameter
gm5566国民彩票 Viscosity: ≤40000 Pas
Working Temperature: ≤400℃
Cleaning Temperature: ≤450℃
Inlet Pressure: ≤12MPa
Differential Pressure: ≤25Mpa
