ZB-E系列圆体泵主要用于挤出机或中高粘度聚合物的增压和稳定流量输送。加热方式主要为电加热。适用于PS . PET . PVC . PC . PA . PMMA . HDPE .LDPE . LLDPE . PP .等工艺中。
技术参数
泵体: 高温工具钢，
齿轮: 高温工具钢，渗氮钢
gm5566国民彩票 滑动轴承: 高温工具钢
轴封: 螺旋密封，填料密封
gm5566国民彩票 加热系统 : 电加热
规格/流量范围: 从0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev
操作参数
gm5566国民彩票 粘度: ≤40000 Pas
温度: ≤400℃
清洗温度: ≤450℃
gm5566国民彩票 进口压力: 高可达12MPa
gm5566国民彩票 高压差: 可达25MPa

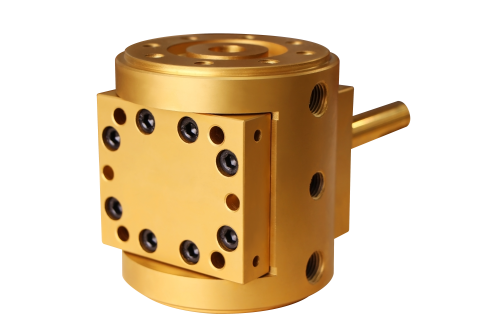

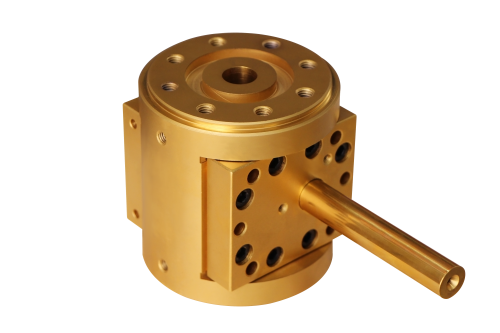

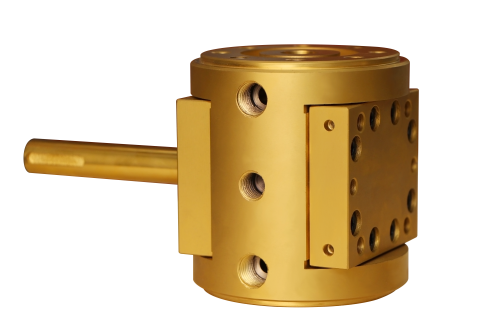

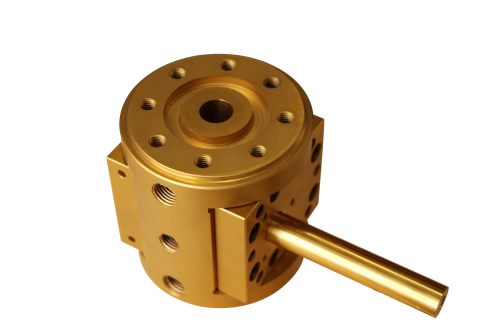

ZB-E Series Circular Melt Pump
gm5566国民彩票 ZB-E series circular melt pump is mainly used for extruder or pressurization, stabilizing flow and transportation of medium or high viscosity polymer. This series of melt pump primarily adopts electrical heating, and applies to PS, PET, PVC, PC, PA, PMMA, HDPE, LDPE, LLDPE, PP, etc.
Technical Parameter
Material for Melt Pump Body: High Temperature Tool Steel
Material for Gear: High Temperature Tool Steel or Nitrided Steel
Material for Sliding Bearing: High Temperature Tool Steel
gm5566国民彩票 Shaft Sealing: Spiral Sealing or Packing Sealing
Heating System: Electrical Heating
Model/Volume Range: 0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev
Operating Parameter
Viscosity: ≤40000 Pas
Working Temperature: ≤400℃
Cleaning Temperature: ≤450℃
Inlet Pressure: ≤12MPa
Differential Pressure:≤25MPa
